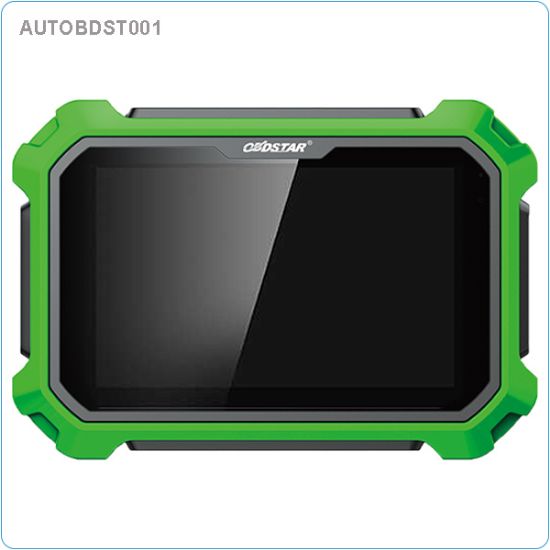

OBDStar Key Master DP Plus Configuration A

OBDStar Key Master DP Plus Configuration A

This Android based unit features OBDStar's advanced technology and is an exceptional all-round tool giving you great levels of coverage on a huge range of vehicles. This configuration A version is designed to have a focus purely on key programming and immobiliser functions.

This tool is completely tokenless and comes with two years updates included for free.

Features:

• Built-in VCI box
• 8-inch touchscreen
• Power through OBD
• Tough carry case
• Rear bracket allowing you to prop onto steering wheel or stand on dashboard
• P001 Programmer, EEPROM Adaptors, RFID Adaptor & Key Renew Adaptor
• C001/C002 Circuit Boards to allow EEPROM reading and writing
• W001/W002/W003 Toyota Data Cables
• Immobiliser induction coil to detect immobiliser faults of a vehicle

Technical Specifications:

• OS: Android 5.1.1
• CPU: Exynos4418 Dual Core ARM Cortex A9 1.4GHz
• Battery: 3700mA rechargeable polymer lithium-ion battery
• RAM: 1GB
• Storage Capacity: 32GB with support for additional 32GB Micro SD
• LCD Size: 8.0 Inch
• LCD Resolution: 1280*800
• Camera: 5MP rear facing camera
• Working temperature: -10? - 55? (14? - 131?)
• Storage temperature: -20? - 70? (-4? - 158??
• Unit weight: 1kg
• Total weigt: Around 8kg
• Dimensions: 25mm x 174 mm x 35mm

Please note that Autowave do not guarantee success on any vehicle included in the manufacturer's application list and do not take any responsibility for any issues that may arise due to user error. We also cannot guarantee constant server access nor the feasible service life of the product.

Part Number: AUTOBDST001
